Volkswagen Thing Engine Case and Hardware

« Back to Volkswagen Thing Catalog
Have a question? Talk to us!

Engine Case

Engine Case

EMPI H.D. Bubble Top Engine Case
New Engine Case Aluminum- Dual Relief Style 13-1600CC

Beetle 66-79    Bus 63-71
Ghia 66-74      Thing 73-74



  • ALL SALES FINAL! Engine Case Style: Universal Oil Passages, Dual Relief
  • Intended Piston/Cylinder Diameter 90.5mm, 92mm Case Cylinder Bore Diameter 96.5mm Crank Clearance 86mm Case Saver Threads 10mm Displacement with 69mm Crankshaft 90.5mm - 1776, 92mm - 1835 Displacement with 82mm Crankshaft 90.5mm - 2110, 92mm - 2180
  • Full Flowed Oil System
  • Machined for Pulley Sand Seal
  • Main Bearing Saddle Shuffle Pins
  • These cases weigh approx 41-44 pounds
  • Comes with Sand seal, Part #00-9112-0
VW Thing
$1549.95
Part #: 98-0466-B


Cylinders

Cylinders

Cylinder Head, Dual Port with Valves

Beetle 71-79
Bus 71
Type 3 71-73
Ghia 71-74
Thing 73-43
VW Thing
$334.95
Part #: 043-101-355 CHK
Cylinder Head, Single Port, Bare

Beetle 66-70
Bus 63-70
Type 3 62-66
Ghia 66-70
VW Thing
$239.95
Part #: 311-101-353 A
Piston & Cylinder Set, 77mm x 64mm Stroke, 36HP

77MM 36HP PISTON & CYLINDER KIT
COMPLETE WITH PISTONS/CYLINDERS/RINGS/PINS AND CLIPS
BEETLE/GHIA/BUS - SOLD SET
VW Thing
$465.00
Part #: 111-198-057
PISTON & CYLINDER COMPLETE SET
AA PERFORMANCE


85.5MM 1584cc 1970-79 - UPGRADES 1967-69
SOLD COMPLETE SET FOR 1 ENGINE Slip-in No Machining
VW Thing
$249.95
Part #: 311-198-069FT
Cylinder Head, Single Port with Valves

Beetle 66-70
Bus 63-70
Type 3 62-66
Ghia 66-70
VW Thing
$345.95
Part #: 311-101-353 ACK
TOP QUALITY MAHLE BRAND, FORGED PISTONS, & EXTRA THICK CAST CYLINDERS COMPLETE SET ( FOR 1 ENGINE) - 85.5MM 1600CC 70-79 - UPGRADES 67-69
VW Thing
$329.95
Part #: 311-198-069FMN


Instructions

Instructions

Bug Me Dvd: Volume 2, Pull Motor & Clutch Service, 1 Hour of Easy to Follow Instruction, Including:

Pull Motor & Replace: Clutch, Release Bearing, Crank Seal, Rear Mounts & Clutch Cable

VW Thing

   More About Volume 2
$25.95
Part #: Volume 2
Bug Me Dvd: Volume 3, Type 1 Complete Engine Rebuild. 2 hours 38 min. of easy to follow instruction, Including:

Tear Down, Clean Up, Inspection & Assembly.

VW Thing

   More About Volume 3
$36.95
Part #: Volume 3


Gaskets

Gaskets

Cylinder Head Shim 94 x 85 x 1

Beetle 67-79
Bus 63-71
Type 62-73
Ghia 67-74
Thing 73-74
VW Thing
$2.99
Part #: 311-101-387 A


Engine Case Parts

Engine Case Parts

Deluxe Engine Hardware Kit 8mm
VW Thing
$34.99
Part #: 4018
Deluxe Engine Hardware Kit, 10mm
VW Thing
$34.99
Part #: 4019

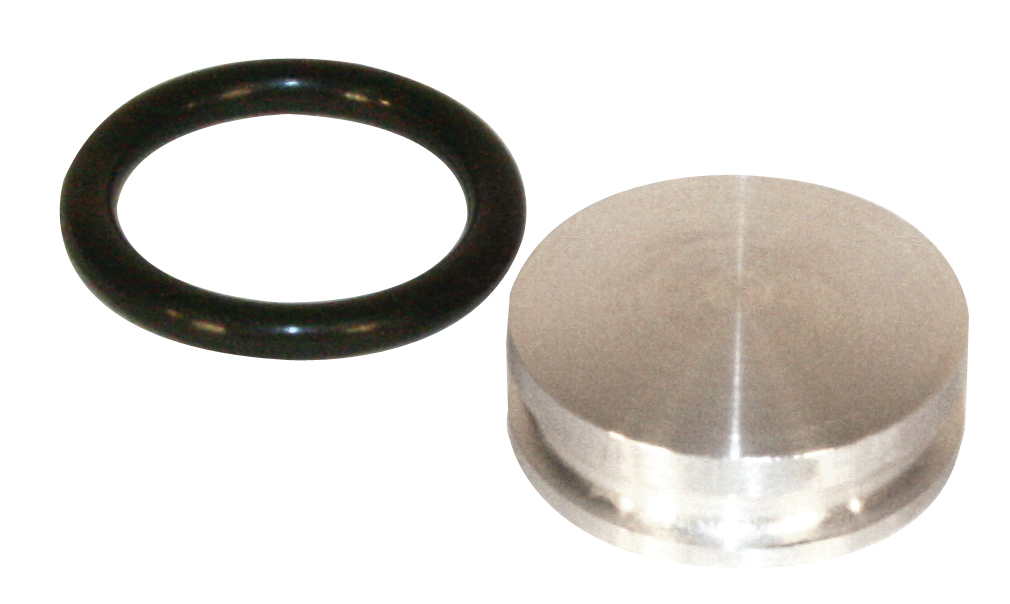

Billet Aluminum Cam Plug with O-Ring


1965-79 Beetle
1963-79 Bus
1962-73 Type 3
1961-74 Karmann Ghia and Thing

VW Thing
$6.99
Part #: 16-9524
Blind Flange Plate Gasket

Beetle 66-79
Bus 63-71
Ghia 66-74
Thing 73-74
VW Thing
$0.49
Part #: 070-115-315
Cam Plug, 29mm

Beetle 65-79
Bus 63-79
Type 3 62-73
Ghia 61-73
Thing 73-74
VW Thing
$3.19
Part #: 113-101-157C
Cam Plug, Rubber

Beetle 66-79
Ghia 66-74
Thing 73-74
VW Thing
$4.19
Part #: 040-101-157
Captive Nut, Top Left Mounting Bolt

Beetle 71-79
Bus 71-79
Type 3 71-73
Ghia 71-74
Thing 73-74
VW Thing
$6.49
Part #: 111-101-135
Case Nut 12mm with seal

Beetle 66-79
Bus 63-71
Ghia 66-74
Thing 73-74
Type 3 66-73
VW Thing
$4.59
Part #: 113-101-131 A
Case Saver, 10mm x 14mm

Beetle 66-79
Bus 63-71
Ghia 66-74
Thing 73-74
VW Thing
$1.62
Part #: C110
Case Saver, 8mm x 12mm O.D.


1966-1979 Beetle
1963-1971 VW Bus
1966-1974 Karmann Ghia and Thing

VW Thing
$1.25
Part #: 043-101-130
Case Saver, Oversized 8mm x 14 mm O.D.


1966-1979 Beetle
1963-1971 VW Bus
1966-1974 Karmann Ghia and Thing

VW Thing
$1.99
Part #: 043-101-130 OS
Case Stud O Ring 10 x 18

Beetle56-79
Bus 50-71
Type 3 62-73
Ghia 56-74
Thing 73-74
VW Thing
$0.50
Part #: 113-101-125
Dual-Relief Oil Pressure Valve Kit


1969-1979 Beetle
1969-1971 Bus
1969-1973 Type 3
1969-1974 Karman Ghia and Thing

VW Thing
$5.99
Part #: VW-710-1200
EMPI Sand Seal for Machined Engine Cases The EMPI sand seal fits Type 1 based engine cases that have been machined to accept this seal
VW never originally had a seal at the crankshaft pulley. The seal has a 2.26" OD and a 1.665 ID. Sand Seals are intended to keep debris out of the engine at the crankshaft.
VW Thing
$9.95
Part #: 00-9112-0
Engine Case Dowel Pin 8 x 25

Beetle 61-79
Bus 63-71
Type 3 65-73
Ghia 66-74
Thing 73-74
VW Thing
$1.19
Part #: 113-101-111
Engine Case Sealing Nut
Main Studs,12mm X 1.5mm self sealing nut

For all 1960-1979 Volkswagen except 1700-2000cc.
VW Thing
$4.25
Part #: 113-101-131A
Hardware Kit, Engine Case


1966-79 Beetle
1963-71 Bus
1966-74 Karmann Ghia and Thing

VW Thing
$24.95
Part #: 113-198-033
Main Bearing Dowel Pin 8 x 5 (requires 5)

Beetle 56-79
Bus 50-79
Type 3 62-73
Ghia 56-74
Thing 73-74
VW Thing
$4.35
Part #: 111-101-123
Oil Galley Plug Set 12pc

Beetle 66-79
Bus 63-71
Type 65-73
Ghia 66-74
Thing 73-74
VW Thing
$10.29
Part #: 111-198-100
Oil Pick up Tube 19mm

Beetle 66-79
Bus 63-71
Ghia 66-74
Thing 73-74
VW Thing
$33.95
Part #: 111-101-149 A
Starter Bolt 10 x 110 3/4 Moon Head

Beetle 54-79
Bus 55-71
Type 3 64-73
Ghia 64-74
Thing 73-74
VW Thing
$2.95
Part #: 111-199-101
Stud Kit, Dual Port 1600 8mm


1971-1979 VW Beetle
1971 VW Bus
1965-1973 Type 3
1971-1974 Karmann Ghia and Thing

VW Thing
$59.95
Part #: 043-198-035
Stud, Engine Mounting Lower 10 x 85 92 required)

1954-79 Beetle
1955-71 Bus
1964-73 Type 3
1964-74 Karmann and Thing
VW Thing
$2.99
Part #: N14 525 1
Upper Engine Bolt 10 x 110

Beetle 54-79
Bus 55-71
Type 3 64-73
Ghia 64-74
Thing 73-74
VW Thing
$1.29
Part #: N10 500 1
Upper Engine Bolt 10 x 70

Beetle 54-79
Bus 55-71
Type 3 64-73
Ghia 64-74
Thing 73-74
VW Thing
$0.89
Part #: N10 470 7
Washer to adjust clutch cable or for engine case studs
12.2mm id x 22mm od x 3mm


Beetle 56-79
Bus 50-71
Type 3 62-73
Ghia 56-74
Thing 73-74
VW Thing
$0.59
Part #: 043-101-129


General

General

Cylinder Head Nut- 10mm

Beetle 56-79
Bus 50-71
Type 3 62-73
Ghia 56-74
Thing 73-74
VW Thing
$0.99
Part #: 021-101-457
Cylinder Head Nut- 8mm (8 per head)

Beetle 56-79
Bus, 50-71
Type 3 62-73
Ghia 56-74
Thing 73-74
VW Thing
$0.99
Part #: 043-101-457
Cylinder Head Washer-10mm

Beetle 56-79
Bus 50-71
Type 3 62-73
Ghia 56-74
Thing 73-74
VW Thing
$0.99
Part #: 111-101-461
Cylinder Head Washer-8mm

Beetle 56-79
Bus 50-71
Type 3 62-73
Ghia 56-74
Thing 73-74
VW Thing
$0.99
Part #: N-154-014
VW Bench Mount Engine Stand, Classic Volkswagen Bug Bus Ghia Type 3 Mounts to work bench
Features swivel head. Use for holding engines or transmissions
1 5/8" male tube that slides into mount
VW Thing
$48.95
Part #: 5001


Bearings

Bearings

Camshaft Bearing Set Standard Genuine Quality Kolbenschmidt! Fits 40HP 1200 (1965 Only), 1300, 1500, 1600 Air Cooled.
VW Thing
$29.95
Part #: 111-198-541
Connecting Rod Bearing Set, Standard Genuine Quality Kolbenschmidt! Fits 40HP 1200, 1300, 1500, 1600 Air Cooled and 1.9/2.1 Wasserboxer Engines
VW Thing
$32.95
Part #: 113-105-701
Double Thrust Camshaft Bearing Set Standard Genuine Quality Kolbenschmidt! 1300, 1500, 1600 Air Cooled.
VW Thing
$29.95
Part #: 111-198-541HDS


Dip Sticks

Dip Sticks

Oil Level Dipstick,Chrome, for upright engines. Stock replacement


VW Beetle and VW Super Beetle 1961-79
VW Bus 1960-71
VW Karmann Ghia 1961-74
VW Thing 1973-74

VW Thing
$9.25
Part #: 113-115-611
VW Engine Oil Dip Stick 1200-1600 cc, Black, Original Style and Length
Felt gasket allows ventilation and prevents blow-by


VW Beetle and Super Beetles 1961-79
VW Karmann Ghia 1961-74
VW Bus 1960-1971
VW Thing 1973-74

VW Thing
$4.49
Part #: AC115603B


Printer friendly


Continue Shopping
Volkswagen Thing parts for the following years: 1973 & 1974
