Volkswagen Type 3 Clutch Miscellaneous Parts

« Back to Volkswagen Type 3 Catalog
Have a question? Talk to us!

Boots

Boots

Boot for Clutch Cable
at Transmission

Also: Boot for Emergency Brake Cable at Chassis for Bus

Clutch Boot For:
VW Beetle and VW Super Beetle 50-79
VW Karmann Ghia 56-74
VW Bus 50-79  Two required
VW Thing 73-74
VW Type 3 62-67

Emergency Brake Cable For:
VW Bus 60-79  From vin#614456

The clutch cable boot  holds and seals the guide tube
for the clutch and accelerator cables. Increases the life
expectancy of the cables. Similar function for brake cable.



VW Type 3
$1.89
Part #: 211-365A
Boot for Clutch Cable
Seals Cable at Chassis
on Type 3 Seals at Transmission

VW Beetle and VW Super Beetle 71-79  From vin# 1112317005
VW Karmann Ghia 71-74  From vin#1412317005
VW Bus 68-79
VW Thing 73-74
VW Type 3 68-73

The clutch cable boot  holds and seals the guide tube for the clutch and accelerator
cables. Increases the life expectancy of the cables.

VW Type 3
$11.95
Part #: 311-363


Hardware

Hardware

Adjusting Wing Nut for Clutch Cable
Back at the transmission.

VW Beetle and VW Super Beetle 46-79
VW Karmann Ghia 56-74
VW Bus 50-79
VW Type 3 62-74
VW Thing 73-73

Note: This is a 7mm wing nut.
To avoid seizing on the clutch cable adjust periodically.

VW Type 3
$3.79
Part #: 131-721-349
Bushing Kit for Clutch Operating Shaft (Fork)

VW Beetle and VW Super Beetle 61-72  Up to vin#1122070812
VW Karmann Ghia 61-72  Up to Vin# 1422070812
VW Bus 59-67  Beginning Vin# 469506
VW Type 3 62-9/71  Up to vin# 312 2006 452

VW Type 3
$12.95
Part #: 113-198-026

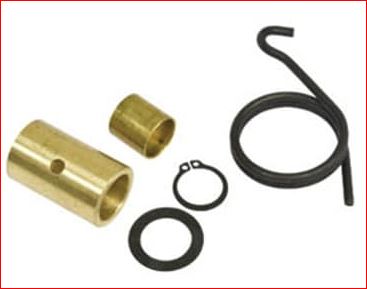

Bushing Kit for throw out shaft replacement. EMPI

1973-1977 Standard Beetles
1973-1979 Super Beetles
1973-74 Karmann Ghias
1976-1979 VW Bus
1973 Type 3
1973-74 VW Thing

Use this kit when replacing a broken or worn out cross shaft
with a 20mm, heavy duty cross shaft. (23mm O.D., 20mm I.D.)

VW Type 3
$17.95
Part #: 18-1053
Clutch Alignment Tool
Centers Disc When Plate Installed
Enables Smooth Transmission Shaft Install
For Standard Transmission VWs
VW Type 3
$3.95
Part #: 7016-B
Clutch Lever

VW Beetle and VW Super Beetle 65-72
VW Bus 65-75
VW Karmann Ghia 65-72
VW Type 3 65-72

VW Type 3
$9.95
Part #: 131-141-719
Guide Sleeve for Clutch Release (Throwout) Bearing

VW Beetle and VW Super Beetle 71-79
VW Karmann Ghia 71-74
VW Bus 71-79
VW Type 3 71-73

VW Type 3
$6.95
Part #: 113-141-181B
Pin in Clutch Pedal Shaft

VW Beetle and VW Super Beetle 46-79
VW Karmann Ghia 56-74
VW Type 3 62-73
VW Thing 73-74

VW Type 3
$1.50
Part #: N128341
Throwout Bearing Clips, Pair

VW Beetle 46-70
VW Karmann Ghia 56-70
VW Bus 50-70
VW Type 3 62-70

VW Type 3
$1.65
Part #: 111-411-177
Washer to adjust clutch cable
or for engine case studs
12.2mm id x 22mm od x 3mm

Use 6 washers for following case studs:
VW Beetle and VW Super Beetle 59-79
VW Bus 59-71
VW Karmann Ghia 59-74
VW Type 3 62-73
VW Thing 73-74

Use 1 on clutch cable sleeve for:
VW Beetle and VW Super Beetle 46-79
VW Bus 50-79
VW Karmann Ghia 56-74
VW Type 3 62-73
VW Thing 73-74

VW Type 3
$0.22
Part #: 043-101-129
10mm Stainless Nut for Bolt N161372 in Bus Seat
One Nut   and
Clutch Cable Lever to Pedal Nue

VW Bus 50-79

VW Type 3
$0.35
Part #: N110102
Bushing Kit for Clutch Operating Shaft (Fork)

VW Beetle and VW Super Beetle 73-79  From Vin#1122070813
VW Karmann Ghia 72-74  From Vin# 1422070813
VW Bus 68-75
VW Type 3 9/71-73  Beginning vin# 312 2006 453

VW Type 3
$13.95
Part #: 113-198-026A
Clutch installation kit.
6 high grade(10.9)  bolts/washers, and pilot tool

All VW air cooled systems.

VW Type 3
$10.95
Part #: 32-1204


Rubber Parts

Rubber Parts

Boot for Clutch or Accelerator Cable
Seals Cable at Chassis

VW Beetle 58-71
VW Super Beetle 1971
VW Karmann Ghia 58-71
VW Thing 73-74
VW Type 3 61-74

1958 Beetles and Ghias beginning vin# 1862188
1971 Beetles and Ghias up to vin# 1_1 2317004

VW Type 3
$8.95
Part #: 113-293D


Instructions

Instructions

Bug Me Dvd: Volume 2, Pull Motor & Clutch Service, 1 Hour of Easy to Follow Instruction, Including:

Pull Motor & Replace: Clutch, Release Bearing, Crank Seal, Rear Mounts & Clutch Cable

VW Type 3

   More About Volume 2
$25.95
Part #: Volume 2


Complete Clutch Kits

Complete Clutch Kits

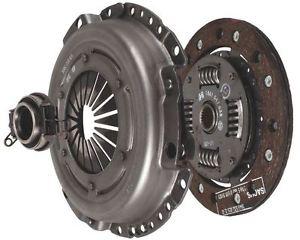

180mm Clutch Kit with Center Pad
VW Beetle 1946-66
VW Bus 1950-63
VW Karmann Ghia 1956-66
VW Type 3 1962-63

180mm Diaphram Type Cover Spring Center Disc Sprung.
Fits all 1200cc single port engines and 1300cc engines

VW Type 3
$149.95
Part #: KF 182 02
