Karmann Ghia Heater Boxes, Cables, Hoses and Parts



« Back to Karmann Ghia Catalog
Have a question? Talk to us!

Heater Box

Heater Box

Exhaust "J" Tubes, Pair
Includes Gaskets
Used to Replace Heat Exchangers

VW Beetle 63-73
VW Karmann Ghia 63-74
VW Bus 63-71

Karmann Ghia
$59.95
Part #: 3357
Heater Box, Right (Passenger side) 1300-1600cc Only

1963.5-1974 Beetle,
1963.5-1974 Karmann Ghia
1963-71 Bus

Karmann Ghia
$189.95
Part #: 043-255-108HD
Heater Box, Left (Drivers side) 1300-1600cc Only

1963.5-1974 Beetle,
1963.5-1974 Karmann Ghia
1963-71 VW Bus

Karmann Ghia
$189.95
Part #: 043-255-107HD
Heater Channel Mount Kit
4 Pieces

1966-1979 VW Beetle & VW Super Beetle
1963-1971 VW Bus
1963-1974 Karmann Ghia
1973-1974 VW Thing

Set of four new steel mounting tabs. Perfect for
replacing stock tabs broken off heater boxes or
custom fabricating your own, when heater boxes
have been eliminated.

Karmann Ghia
$15.95
Part #: 3359


Hardware

Hardware

Heater Box Repair Pipe
Cut rotted section and slip over outlet pipe
Weld in place

VW Beetle 64-74
VW Bus 64-71
VW Karmann Ghia 64-74
VW Type 3 62-73

Karmann Ghia
$6.49
Part #: 113-255-107
Muffler to Heater Box Clamp
Heat Exchanger, 25mm Wide

VW Beetle and VW Super Beetle 63-79
VW Bus 63-71
VW Karmann Ghia 63-74

Karmann Ghia
$3.95
Part #: 113-255-341A
Barrel Clamp, Accelerator and Heater Cables
(carburetor to accelerator cable and  heater cable to heater box lever)

Volkswagen Beetles and SuperBeetles 1961-79
VW Karmann Ghia 1961-79
Volkswagen Bus 1960-79
Volkswagen Type 3 1961-74
Volkswagen Vanagon 1980-93
Volkswagen Thing 1973-74

Karmann Ghia
$1.00
Part #: 311-129-777
Heat Exchanger Clamp Kit , Made in Germany
Right (Passenger) Side

VW Beetle 63-74
VW Super Beetle 1971-74
VW Bus 63-71
VW Karmann Ghia 63-74
VW Thing 1973-74

This is the heater box lever kit. It actuates the butterfly that opens
heat flow from the heater box into the car.

Karmann Ghia
$31.95
Part #: 043-298-148A
Heat Exchanger Clamp Kit, Made in Germany
Left (Driver) Side

VW Beetle 63-74
VW Karmann Ghia 63-74
VW Bus 63-71

Karmann Ghia
$31.95
Part #: 043-298-147A
Heater Cable Clamping Kit,
One Package for Either Side
Clamps Heater Cable to Heat Exchanger

VW Beetle 63-74
VW Bus 63-71
VW Karmann Ghia 63-74
VW Thing 1973-74
VW Type 3 1962-74

Karmann Ghia
$9.95
Part #: 111-298-101A
Stainless-Steel Heater Hose Clamps
Secures Fan Housing and Muffler Pre-Heater Flange, Set of 4



Karmann Ghia
$6.95
Part #: 3380


Cables

Cables

Heater Cable to Heater Boxes.
3670 mm long

VW Beetle 56-63        up to vin# 5225023
VW Karmann Ghia 56-63

Karmann Ghia
$4.99
Part #: 111-711-629B
Heater Cable to Heater Boxes
3660mm long.

VW beetle 63-64 beginning vin# 5225044
VW Karmann Ghia 63-64

Note on 1963 Ghias: Please measure cable length to verify cable choice.
The 3670 mm cable is 144 1/2 inches long.
The 3660 mm cable is 144 inches long.

Karmann Ghia
$7.99
Part #: 111-711-629E
Heater Cable to Main Heater Box. Cars With Fan.

VW Beetle & Super Beetle 73-74
VW Karmann Ghia 73-74
VW Thing 73-74
VW Type 3 66-73

This heater cable is for use with cars with blower fans.
Fits from heater operating lever to heat exchangers.

If your car has no blower fan then order 111-711-717A.


Karmann Ghia
$4.95
Part #: 133-711-717
Heater Cable, to Rear Foot Well Vents.

VW Beetle (Standards) 65-72
VW Karmann Ghia 65-72

This heater cable connects to control vents underneath rear seat,

Karmann Ghia
$3.99
Part #: 111-711-713
Heater Cable. To Rear Foot Well Vents.

VW Beetle and VW Super Beetle 73-79
VW Karmann Ghia 73-74
VW Type 3 67-74

This heater cable connects to the control vents under
the rear seat (not to heater boxes.

Karmann Ghia
$4.95
Part #: 111-711-713A
Heater Cable

VW Beetle 65-72
VW Super Beetle 71-72
VW Karmann Ghia 65-72

This heater cable is used with heater boxes without the electric blower fan.
The heater cable connects to both heater boxes.

Karmann Ghia
$3.95
Part #: 111-711-717-A


Seals

Seals

Heater Cable Rubber Sleeves. Pair.

VW Beetle & VW Super Beetle 1950-79
VW Karmann Ghia 1956-74
VW Thing 1973-74
VW Type 3 1962-74

These tubes encase the heater cable.

Karmann Ghia
$3.95
Part #: 113-411
Rubber Valve, Center Deck Water Drain Hole
Also heater channel bottom plate hole.


VW Beetle and VW Super Beetle 1945-79
VW Bus 1967-79
VW Karmann Ghia 1956-74
VW Vanagon 1980-91

Karmann Ghia
$4.49
Part #: 111-801-177


Instructions

Instructions

Bug Me Dvd: Volume 7, Heater Channel Replacement. 1 Hour 40 Minutes of Easy To Follow Instruction, Including:

Heater Channel, Lower Door Post, Lower Quarter Panel.
Includes Beetle and Super Beetle convertible reinforcement rails work.

Karmann Ghia

   More About Volume 7
$25.95
Part #: Volume 7


Heater Hoses

Heater Hoses

Air Hose ; Aluminum Reinforced Cardboard.
i.d 32 mm x 1080mm (42 inches)

Front Heater to Dashboard Defroster Vent
or Fresh Air Vent.

Note: 68 cars: not used as fresh air vent hose

VW Beetle Sedan (Standard) 60-77
VW Beetle and VW Super Beetle Convertible 60-72
VW Super Beetle Sedan 71-72

Karmann Ghia
$12.95
Part #: 113-819-723A
Aluminum Heater Hose, 50mm X 1000mm, Each (Ref P/N 3378)

VW Beetle Standards 1963-77
VW Super Beetle 1971-79
VW Bus 63-71
VW Karmann Ghia 63-74
VW Thing 73-74

This hose goes from the fan shroud to heater box.

Karmann Ghia
$7.49
Part #: 028-129-087AL
Fresh Air Hose to Fan Shroud, Plastic, 10.25" Long

VW Beetle 63-77
VW Karmann Ghia 63-74
VW Thing 73-74

Karmann Ghia
$9.95
Part #: 113-255-292P
OEM, German Heater Hose
Fan shroud to heater box.

Also called Fresh Air Hose
Reinforced Paper/Aluminum
50mm i.d. (2 inches), 1 meter (39") long/b>

VW Beetle and VW Super Beetle 63-79
VW Karmann Ghia 63-74
VW Bus 63-71
VW Thing 73-74

Note: Also for carburetor pre-heat 68 up
May cut in pieces: 19" approx for preheater
two 9" pieces for fan shroud.

Karmann Ghia
$11.95
Part #: 028-129-087AGR
Hose, Heater Box to Body,
Ends: 50mm and 50mm

VW Beetle 1947-64
VW Karmann Ghia 1956-64

We list original years for these hoses. If your car had changes to the
heat exchanger or an engine swap then you should order your hose
according to the listed end diameters of the hose.



Karmann Ghia
$24.95
Part #: 113-255-355B
Hose, Heater Box to Body
Left or Right heater box to duct under body at rear of heater channel.

Ends:  60mm/64mm

VW Beetle 1965-67
VW Karmann Ghia 1965-67

We list original years for these hoses. If your car had changes to the
heat exchanger or an engine swap then you should order your hose
according to the listed end diameters of the hose.





Karmann Ghia
$24.95
Part #: 113-255-355D
Hose, Heater Exchange to Body
Ends: 60mm and 50mm


VW Beetle 1963.5-1967
VW Karmann Ghia 1963.5-67

We list original years for these hoses. If your car had changes to the
heat exchanger or an engine swap then you should order your hose
according to the listed end diameters of the hose.


Karmann Ghia
$24.95
Part #: 113-255-355A
Hose, Heater Exchange to Body
From left or right heater box to duct under body at rear of right heater channel
Ends: 60/60mm x 420mm long.

VW Beetle & VW Super Beetle 1973-79
VW Karmann Ghia 1973-74
VW Thing 1973-74
VW Bus 1972-79

We list original years for these hoses. If your car had changes to the
heat exchanger or an engine swap then you should order your hose
according to the listed end diameters of the hose.

Karmann Ghia
$24.95
Part #: 113-255-356M
Hose, Heater Exchange to Body
From left or right heater box to duct under body at rear of the heater channel
Ends:  60/60mm

VW Beetle 68-72
VW Karmann Ghia 68-72
VW Type 3 68-72
VW Bus 68-71

We list original years for these hoses. If your car had changes to the
heat exchanger or an engine swap then you should order your hose
according to the listed end diameters of the hose.




Karmann Ghia
$29.95
Part #: 113-255-355M

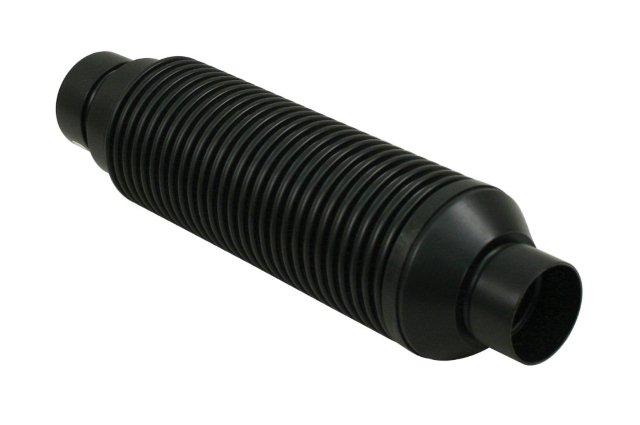

Hose, Heater to Body
From left or right heater box to duct under body at rear of the heater channel
Ends:  50/50mm.

VW Beetle 1963-67
VW Karmann Ghia 1963-67
VW Bus 1963-67

We list original years for these hoses. If your car had changes to the
heat exchanger or an engine swap then you should order your hose
according to the listed end diameters of the hose.



Karmann Ghia
$24.95
Part #: 113-255-355C
Heater Junction Pipe Left (Driverside) Under Rear Seat

VW Beetle 1968-1979
1968-74 Ghia
Karmann Ghia
$44.95
Part #: 111-255-415F
Heater Junction Pipe Right (Passenger side) Under Rear Seat
VW Beetle 1968-1979
1968-74 Ghia
Karmann Ghia
$44.95
Part #: 111-255-416F


Hose Grommets

Hose Grommets

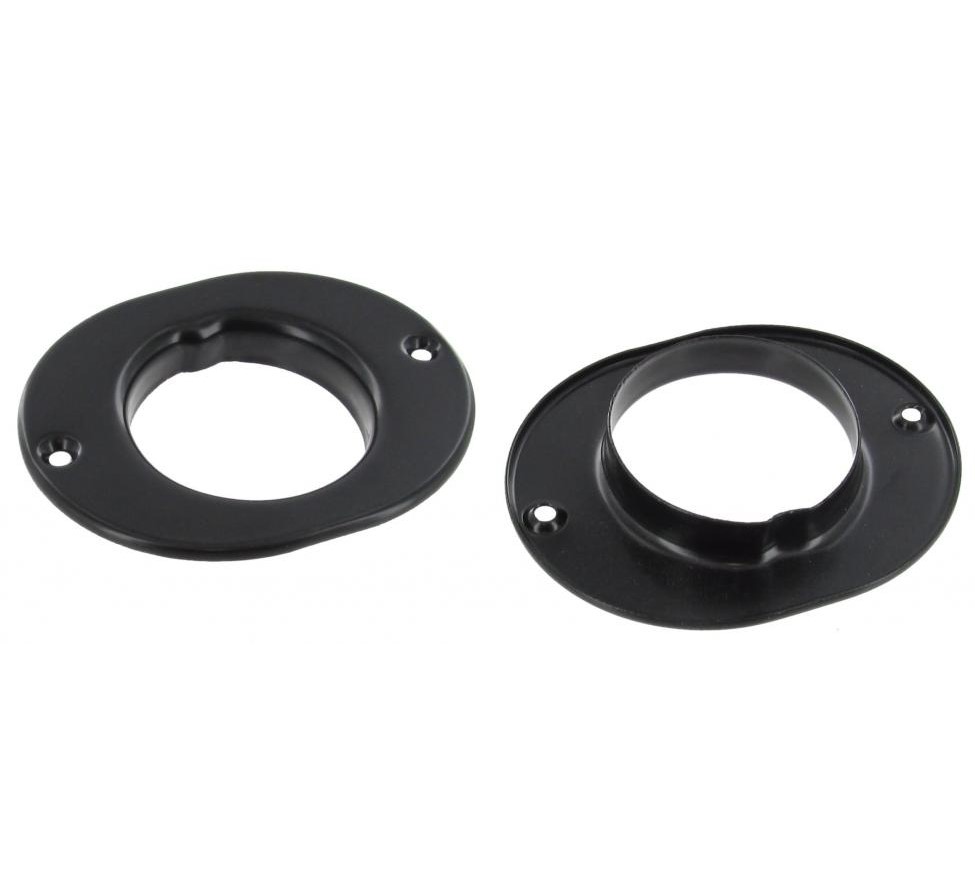

Seals, heater hose to body. Pair.
German seals.

VW Beetle and VW Super Beetle 1963-79
VW Karmann Ghia 1963-74
VW Type 3 1963-74

There are 2 between the flexible pipes
under the engine and heat exchangers
and 2 between the pipes and the vehicle.
You will need a total of 4 per car.

Karmann Ghia
$14.95
Part #: 111-819-945
Fresh Air Hose Grommet Thru Sheet Metal.

VW Beetle and VW Super Beetle 63-79
VW Karmann Ghia 63-74
VW Bus 63-71
VW Thing 73-74
Karmann Ghia
$3.09
Part #: 113-119-585B
Preheat Hose Grommet .

VW Beetle 1958-67
VW Karmann Ghia 1962-67
VW Bus 1962-67
Karmann Ghia
$3.95
Part #: 113-119-571


Hoses: Breather

Hoses: Breather

Hose: Carburetor Pre-Heat.
1" X 35" long, as original.

From back of heat exchanger to air filter.
Also Bug window defroster.

VW Beetle 63-79
VW Karmann Ghia 63-72

Karmann Ghia
$9.95
Part #: 211-255-359
