Karmann Ghia Fuel Pumps and Parts

« Back to Karmann Ghia Catalog
Have a question? Talk to us!

Rubber and Seals

Rubber and Seals

Rubber Grommet, 8mm i.d.
For Metal Fuel Line via Engine Shroud
Also for Accelerator Cable Tube (043-129-893)
Karmann Ghia
$1.39
Part #: N200921


Fuel Pumps

Fuel Pumps

Best Selling Electric Fuel Pump
(EMPI) 1.5-4.0 PSI
With fittings and clamps.

Notes: This fuel pump is compatible with all 12 Volt air-cooled VWs that are equipped with carburetors. It will not work for fuel injected vehicles. The fuel pump kit includes barbed fittings and hose clamps to lock fuel lines in place. Solid state circuitry and a heavy duty case make for a reliable , long lasting fuel pump. Wiring straight forward: Connect + and - wires.

Karmann Ghia
$45.95
Part #: 41-2510-8
Electric Fuel Pump
For 1200-1800 cc engines
12 Volt Systems

VW Beetle 50-74
VW Karmann Ghia 56-74

Note: Use in any air cooled engine but use fuel pressure
regulator 9102 in conjunction with electric pumps in carburetor systems.
This electric fuel pump pumps 20 gallons per hour. This is a solid
state pump which takes either threaded line input or line clamps. It
should be mounted close to the fuel tank.

Draws only 1 amp. Built in check valve prevents reverse flow. Facet
is a leader in electric fuel pumps.

Karmann Ghia
$69.95
Part #: 938-439
Fuel Pump for 1600 with Alternator.
Comes with gaskets.

VW Beetle and VW Super Beetle 1973-1974
VW Karmann Ghia 1973-1974
VW Thing 1973-1974

This fuel pump is to be used with a 4-inch (100mm) Pushrod
{Part# 113-127-307A) on alternator-equipped cars.
If installed with a 4.2-inch (long) Pushrod, the actuating lever
in the base of the fuel pump will become damaged rendering fuel pump useless.
Fuel pumps with damaged actuating levers are not returnable.
Note: This fuel pump can be used on any upright engine which
has been converted to alternator.

Karmann Ghia
$58.95
Part #: 113-127-025G
Fuel Pump. 1500-1600cc with Generator.

VW Beetle 1966-73 and earlier cars with 1600cc engines and generator
VW Bus 1966-71 and earlier cars with 1600cc engines and generator
VW Karmann Ghia 1966-73 and earlier cars with 1600cc engines and generator
VW Type 3 62-67

This fuel pump has a slip on fuel inlet so wont work with
threaded fuel lines. You would use a clamp on the pump
inlet over the fuel line.. Most restorers use the 113-127-025CD fuel pump
instead of this one.
Must use 113-127-307 push rod.

Karmann Ghia
$44.95
Part #: 113-127-025B
Fuel Pump. 40hp Engines.
Has OEM Threads for Inlet Pipe

VW Beetle 1961-65
VW Karmann Ghia 1960-65
This fuel pump will work well with any 40hp engine
having original metal threaded fuel line.
is the old style fuel pumps with the straight barb outlet, but has a threaded inlet for the threaded fuel line!

Karmann Ghia
$49.95
Part #: 211-127-025JP
Fuel Pump. 40hp Engines.
Has OEM Threads for Inlet Pipe

VW Beetle 1961-65
VW Karmann Ghia 1960-65
This fuel pump will work well with any 40hp engine
having original metal threaded fuel line. This fuel
pump is the one to use when you want to preserve
the original metal fuel inlet line with the threaded fitting..

Karmann Ghia
$54.95
Part #: 211-127-025
VW Beetle and Ghia 1971-72, Bus 1971 and T-3 1962-67
Mechanical Fuel Pump
Original Dome Type for Cars with Upright Generator Engines.
This fuel pump takes the longer of the two push rods. 113-127-307





Karmann Ghia
$36.95
Part #: 113-127-025CD


Instructions

Instructions

A Detailed Fuel Pump Guide: Operation, Maintenance, Removal, Stroke Adjustment, Installation. Well Illustrated with Step by Step Instructions.
Karmann Ghia
$4.95
Part #: INSTR-FUELPUMP


Push Rods

Push Rods

Pushrod, Fuel Pump (Long) 4.25".
For Cars with Generator

VW Beetle and VW Super Beetle 61-73
VW Karmann Ghia 61-73
VW Bus 60-71
VW Type 3 62-67
VW Thing 73-74

Karmann Ghia
$3.95
Part #: 113-127-307
Pushrod, Fuel Pump (Short)
100mm, just under 4.0".
For Cars with Alternator

VW Beetle and VW Super Beetle 73-79
VW Karmann Ghia 73-74
VW Bus 1973-79 with 1600cc
VW Vanagon 80-91 (with CT and Wasserboxer Engines)

Karmann Ghia
$3.49
Part #: 113-127-307A


Fuel Pump Rebuild Kits

Fuel Pump Rebuild Kits

Fuel Pump Rebuild Kit.
For all 25 and 36hp Fuel Pumps.

Note: this rebuild kit is not intended for
sealed Brazil/China generic fuel pumps.
It is intended for the rebuilding of oem fuel pumps.

Karmann Ghia
$70.95
Part #: 111-198-551
Fuel Pump Rebuild Kit
For OEM Fuel Pump (with 4 screw top) and slip on fittings
Note: this rebuild kit is not intended for
sealed Brazil/China generic fuel pumps.
It is intended for the rebuilding of oem fuel pumps.

40 HP VWs

Karmann Ghia
$49.95
Part #: 111-198-555
Fuel Pump Rebuild Kit
For all 40hp Cars with Screw Inlet
Karmann Ghia
$42.95
Part #: 111-198-553


Fuel Pump Accessories

Fuel Pump Accessories

Electric Fuel Pump Mount Kit.
Allows for the installation of EMPI or Facet
electric fuel pumps in the stock pump location.

VW Beetle and VW Super Beetle 61-74
VW Karmann Ghia 61-74
VW Type 3 62-67

Karmann Ghia
$19.95
Part #: 31-3010

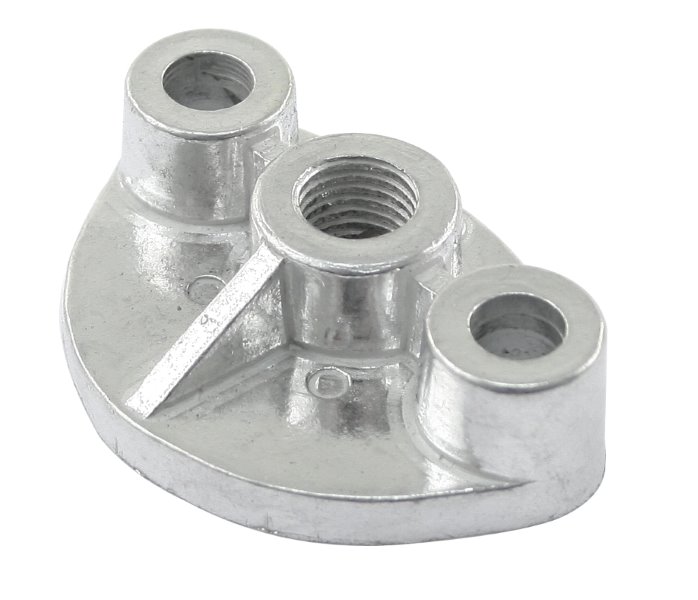

Fuel Pump Block Off Plate
Aluminum with Pad

This is a block-off plate for your fuel pump if you are converting from stock to electric fuel pump system. You can put this unit on the engine and run your electrical fuel pump on the side wall of the engine compartment. This unit has threaded boss in the center if you want to drill it out and use an adapter later. Fits all 1600cc engines.

Choose either the plate with breather hose center inlet or without (shown here: plate with the hose inlet.)

Karmann Ghia
$6.95
Part #: 9094

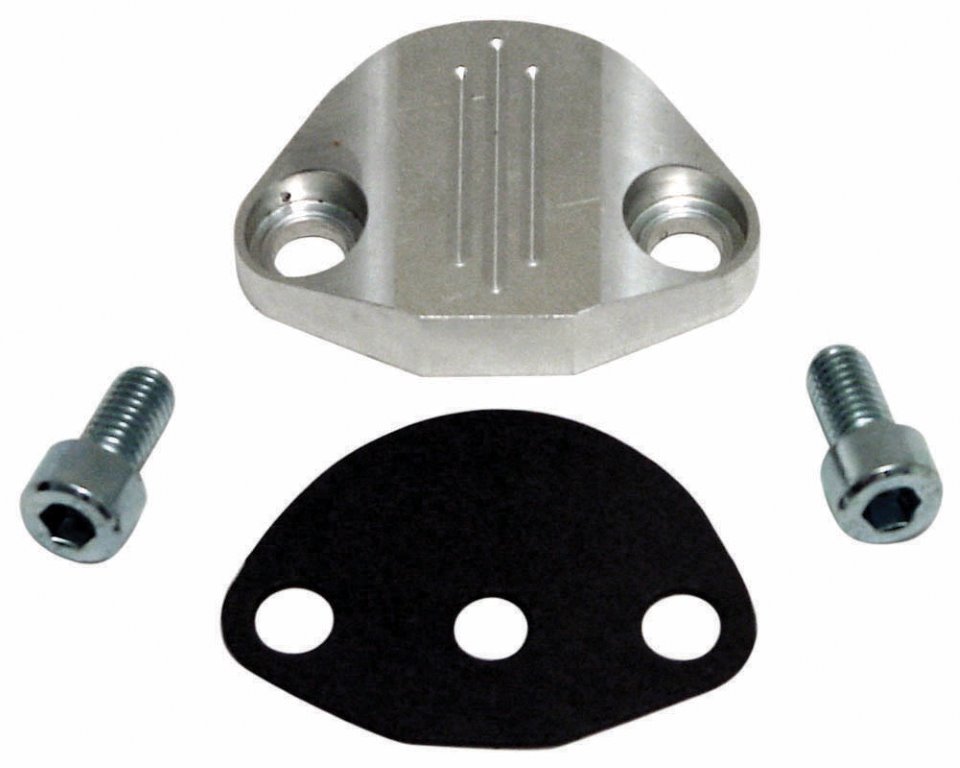

Fuel Pump Block off Plate
Aluminum with Seal

This is the fuel pump plate without the breather hose inlet. As with the
version with the breather hole these plates are rust proof polished aluminum.

Karmann Ghia
$19.95
Part #: 31-3011
Fuel Pump Flange, 40Hp, 1200-1600cc

VW Beetle and VW Super Beetle 61-74
VW Karmann Ghia 61-74
VW Bus 60-71
VW Type 3 62-67
VW Thing 73-74

This fuel pump flange is for 40hp and later engines only.
It will not work on 25hp, 36hp, or 1700cc-2000cc Type 4 engines.
Tighten feul pump carefully to avoic damage to the fuel pump flange.

Karmann Ghia
$7.49
Part #: 113-127-303
Pair of Fuel Pump Gaskets
Flange to Engine and Fuel Pump to Flange

VW Beetle and VW Super Beetle 61-74
VW Karmann Ghia 61-74
VW Type 3 62-67

For generator or alternator fuel pumps.

Karmann Ghia
$0.99
Part #: 113-198-311
