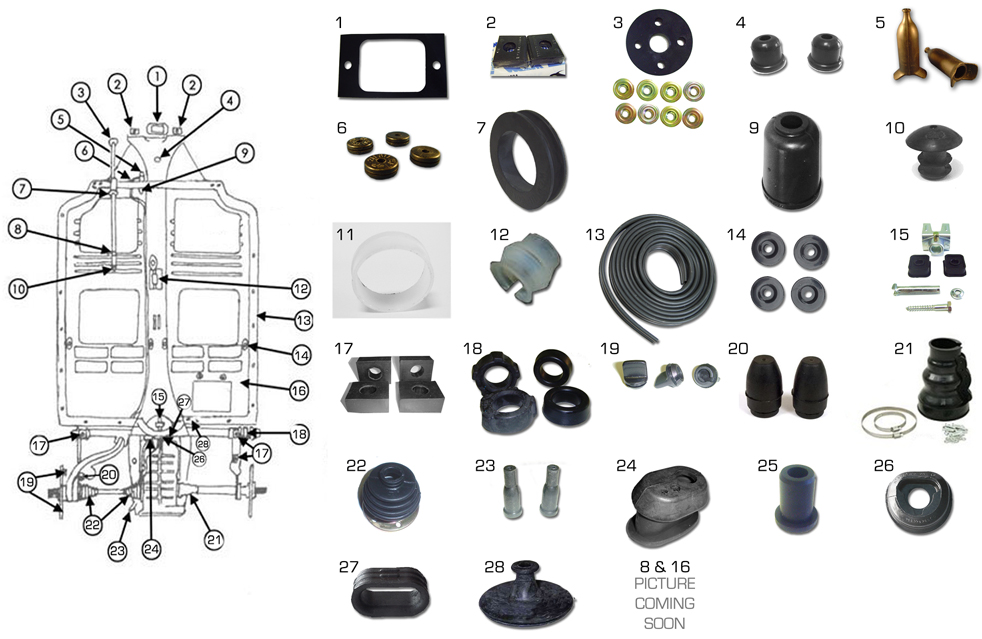

Volkswagen Beetle Chassis Parts, Miscellaneous

Also: Boot for Emergency Brake Cable at Chassis for Bus

Clutch Boot For:
VW Beetle and VW Super Beetle 50-79
VW Karmann Ghia 56-74
VW Bus 50-79 Two required
VW Thing 73-74
VW Type 3 62-67

Emergency Brake Cable For:
VW Bus 60-79 From vin#614456

The clutch cable boot holds and seals the guide tube
for the clutch and accelerator cables. Increases the life
expectancy of the cables. Similar function for brake cable.

VW Beetle 53-74
VW Super Beetle 71-79
VW Karmann Ghia 56-74
VW Thing 73-74
VW Type 3 62-73

These fuel line grommets install at the chassis front under the fuel tank
and also at the rear along the transmission.

also fits 1968 with autostick

VW Beetle 50-65
VW Karmann Ghia 56-65

This seal installs behing the tunnel inspection plate at the chassis framehead.
prevents debris from entering the inspection tunnel.

These tubes encase the heater cable.

VW Beetle and VW Super Beetle 50-79
VW Karmann Ghia 56-74
VW Type 3 62-73
VW Thing 73-74

VW Beetle 50-59
VW Karmann Ghia 56-59

These install into the rear torsion housing on the sides of the spring plate.
They hold the plate in the torsion housing; one on left, one on right side of car
and the other two inside the spring plate cap. (The cap is bolted
over the spring plate/torsion housing.)


VW Beetle and VW Super Beetle 1969-79
VW Karmann Ghia 1969-74
VW Thing 1973-74

These install into the rear torsion housing on the sides of the spring plate.
They hold the plate in the torsion housing; one on left, one on right side of car
and the other two inside the spring plate cap. (The cap is bolted
over the spring plate/torsion housing.)

Brake and Clutch Pedal Stop 58-79 VWs

Hand Brake Cable Retaining Clamp to Plate
Front or Rear One Bolt Wheel Cylinders
Transmission Mount


VW Beetle and VW Super Beetle 69-79
VW Karmann Ghia 69-74
VW Type 3 68-73
VW Thing 73-74

Front Axle Beam Mounting Bolt for following:
VW Standard Beetle 1946-1977
VW Karmann Ghia 1956-1974
VW Thing 1973-1974

Shock Absorber Mounting Bolt for following:
VW Beetle 10/52-5/59 (upper and lower)
VW Karmann Ghia 1956-5/59 (upper and lower)
VW Bus 1950-1967 (lower only)

VW Beetle and VW Super Beetle 1956-79
VW Karmann Ghia 56-74
VW Type 3 all
VW Thing 1973-74

These pads sit between the body and chassis and help absorb road vibration

VW Beetle and VW Super Beetle 46-79

VW Beetle (Standard) 66-78

VW Beetle Convertible 1966-70
VW Beetle Sedan 1966-77
VW Karmann Ghia 1966-74

Recommended for all models.

VW Beetle and VW Super Beetle 60-79
VW Karmann Ghia 60-74
VW Type 3 62-73

Prevent suspension from bottoming out.
